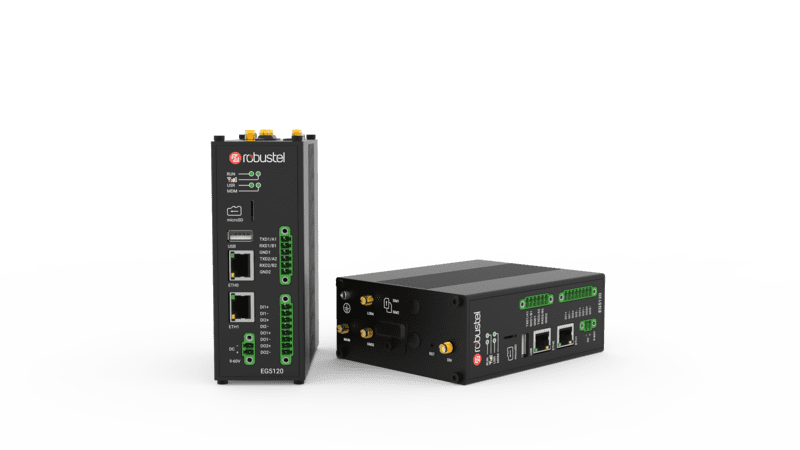

Robustel EG5120
Robustel’s EG5120 is a new generation of industrial edge computing gateway, supporting global 5G/4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11 (bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications.
EG5120 supports Docker for easy deployment of applications and benefits from ‘RobustOS Pro’ – Robustel’s latest router OS with enhanced cybersecurity, advanced GUI and a myriad of software features including VPNs, Smart Roaming, SMS remote control and more.
With a quad core 1.6 GHz Cortex A53 CPU and an integrated NPU of 2.3 TOPS that greatly accelerate machine learning inference, EG5120 will take the compute power to the next level, best for the edge computing and edge AI applications, can also be used as a combination of cellular router + embedded PC in all the industrial filed.
RCMS is Robustel’s free router monitoring service that is fully compatible with the EG5120. It allows customers to see a location overview of their routers quickly and simply on a map plus features such as data usage, signal strength, current network and much more can then be viewed on a per router/gateway basis. Over-the-air updates are supported for Firmware, router configuration and Apps serving as essential “insurance” if anything was not quite right during deployment.
You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net
- Highly stable 5G/4G/3G/2G cellular connectivity with global band coverage
- High performance compute engine with 1.6 GHz CPU + 16 GB eMMC Flash for running complex applications
- ‘Docker’ containerisation supported
- Cutting-edge (Release 16) 5G interface
- 802.11ac Wi-Fi (optional) supporting AP and Client modes
- Bluetooth (optional), Bluetooth 5.2 compliant
- 2 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
- 2 x DI & 2 x DO for simple monitoring and control
- Dual SIM card slots for redundant communications
- Wide Operating Temperature range for industrial applications
- Full Modbus TCP and Modbus RTU support including MQTT transfer to mainstream cloud platforms
- Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
- More than 50,000 applications from Debian repository currently available
- Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN + more VPN options
- Supports RCMS – Robustel’s router/gateway management platform for effective management of large estates of devices
Regulatory and Type Approvals (*In progress)
- EnvironmentalRoHS2.0*
Physical Characteristics
- Ingress protectionIP30
- Housing & WeightMetal, 567 g
- Dimensions49 x 105 x 128 mm
- InstallationsDesktop, wall mounting and 35 mm DIN rail mounting
- Operating temperature-40 ~ + 70 C
- Storage temperature-40 ~ + 85 C
- Relative humidity5 ~ 95% RH
Power supply and Consuption
- Connector2-pin 3.5mm terminal block with lock
- Input voltage9 ~ 60 V DC
- Power consumptionIdle: 5W; Data link: 20W (peak)
App Center (Available Apps for RobustOS Pro)
- AppsL2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic route, Captive Portal,Modbus Master,etc
SDK
- Operating SystemRobustOS Pro (based on Debian 11(bullseye))
- Supported programming languagesC, C++, Python, Java, Node.js etc. (for users to develop own applications)
- Flash available for SDK14 GB
- RAM available for SDK1.5 GB
Sotfware (Basic features of RobustOS Pro)
- Network protoclosPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, DNS, ARP, DDNS, etc.
- VPN tunnelIPsec, OpenVPN, GRE
- FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
- Remote managementWeb, CLI, SMS
- Serial portTransparent, TCP Client/Server, UDP, Modbus RTU Gateway
- OthersSmart Reboot, Data Guard, Smart Roaming
Others
- SD1 x microSD
- Reset button1 x RST
- USB1 x USB 3.0 (host), Type A, 5V 900mA
- LED indicators1 x RUN, 1 x MDM, 1 x USR, 1 x Signal
- WatchdogExternal
Bluetooth interface (Optional)
- Number of antennas1 (Multiplexing Wi-Fi antenna)
- ConnectorRP-SMA-K
- StandardsBluetooth 2.1 and 3.0+Enhanced Data Rate (EDR) + Bluetooth 5.2
Wi-Fi Interface (optional)
- Number of antennas2
- ConnectorRP- SPA-K
- Standards802.11 a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes
- Frequency bands2.412 – 2.484 GHz (2.4 GHz ISM band) 4.915 – 5.925 GHz (5 GHz ISM band)
- SecurityWEP 64-bit and 128-bit encryption with H/W TKIP processing; WPA/WPA2; AES-CCMP
- Data rate802.11n: up to 300 Mbps – 2 x 2 MIMO 802.11ac: up to 866.7 Mbps (80 MHz channel)
DI/DO Interface
- Ports2 x DI + 2 x DO, wet contact
- Connector8-pin 3.5 mm terminal block with lock (DI/DO)
- IsolationBi-directional optocoupler (DI) Single directional optocoupler (DO)
- Absolute maximum VDC+30V DC
- Absolute maximum ADC100 mA
- Signal definitionDI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2-
Serial Interface
- Type2 x RS232/RS485 (software conffigurable)
- Connector6-pin 3.5 mm terminal block with lock
- ESD protection8 KV Air, 4 KV contact
- Baud rate300bps to 115200 bps
- SignalRS232: TXD, RXD, GND; RS485: Data+ (A), Data- (B), GND
Ethernet Interface
- Ports2 x RJ45, 10/100/1000Mbps, compliance with 1000BAST-T, LAN or WAN
- Magnet isolation1 KV
GNSS Interface (Optional)
- Version4G, 5G
- Number of antennasSMA-K (Optional, requires a 4-in-1 Combo Antenna)
- ConnectorSMA-K
- TechnologyGPS
Cellular Interface
- Version4G, 5G
- Number of antennas2, 4
- ConnectorSMA-K
- SIM2 x Mini SIM (2FF)
Hardware System
- CPUQuad core Cortex-A53, 1.6 GHz
- NPU2.3 TOPS
- RAM2 GB DDR4
- Flash16 GP eMMC
